SIET

SIET Metalbox 20mA

SIET Metalbox 20mA

SKU:650203

Regular price £155.87
Regular price Sale price £155.87
ex VAT · £187.04 inc VAT
Sale Sold out
Shipping calculated at checkout.
Quantity

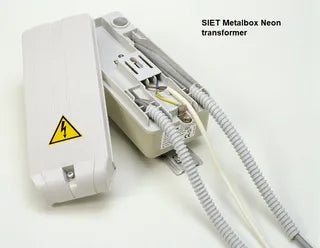

SIET Metalbox 20mA neon transformers for glass neon signs, in a metal case for indoor and outdoor use (IP44). Output voltages from 3kV to 10kV. Class I.c.c 1.2, for neon (red) gas only.

  • Output current: 20mA (operating current 20-25mA)
  • Voltages: 3, 4, 5, 6, 7.5, 8, 9 and 10kV
  • Earth leakage trip fitted internally
  • Conforms to EN61050 and EN50107
  • Supplied without wires or HT leads

Dimming or flashing needs leading edge dimming equipment, external earth leakage protection and our 65Bridge link. Call us before you dim or flash one of these units.

Must be installed by a suitably qualified person, following SIET's instructions and current wiring regulations. Power factor correction capacitors are available separately.

Good to know

  • Fitted with a safety knife switch, with entries for PVC conduit under the lid
  • The output is centre earthed (for example 8kV = 4kV - earth - 4kV) to reduce stress on the insulation
  • The rated output voltage is measured open circuit; once the tube is lit it drops to roughly half
  • A power factor correction capacitor roughly halves the mains current drawn
  • The metal case protects the resin, spreads heat away from the terminals and shields against electromagnetic interference

Specifications

Voltage3kV to 10kV output, 230V AC 50Hz input
IP ratingIP44
Size255 x 84 x 81mm to 275 x 95 x 102mm
Current20mA
Manufacturer part no.650203 to 650210
Download datasheet (PDF)
