Hansen LED Chain

Hansen LED Chain

LC-BL-20-1m

£107.40
£107.40
ex VAT · £128.88 inc VAT
Sale Sold out
Shipping calculated at checkout.
led colour
led spacing
  • Free UK delivery over £500 Delivery details
  • Same-day despatch on orders before 2:30pm, stock permitting
  • Need help choosing? 01892 783 900, Mon to Fri 9am to 5pm
  • Trade customer? Log in for your trade prices

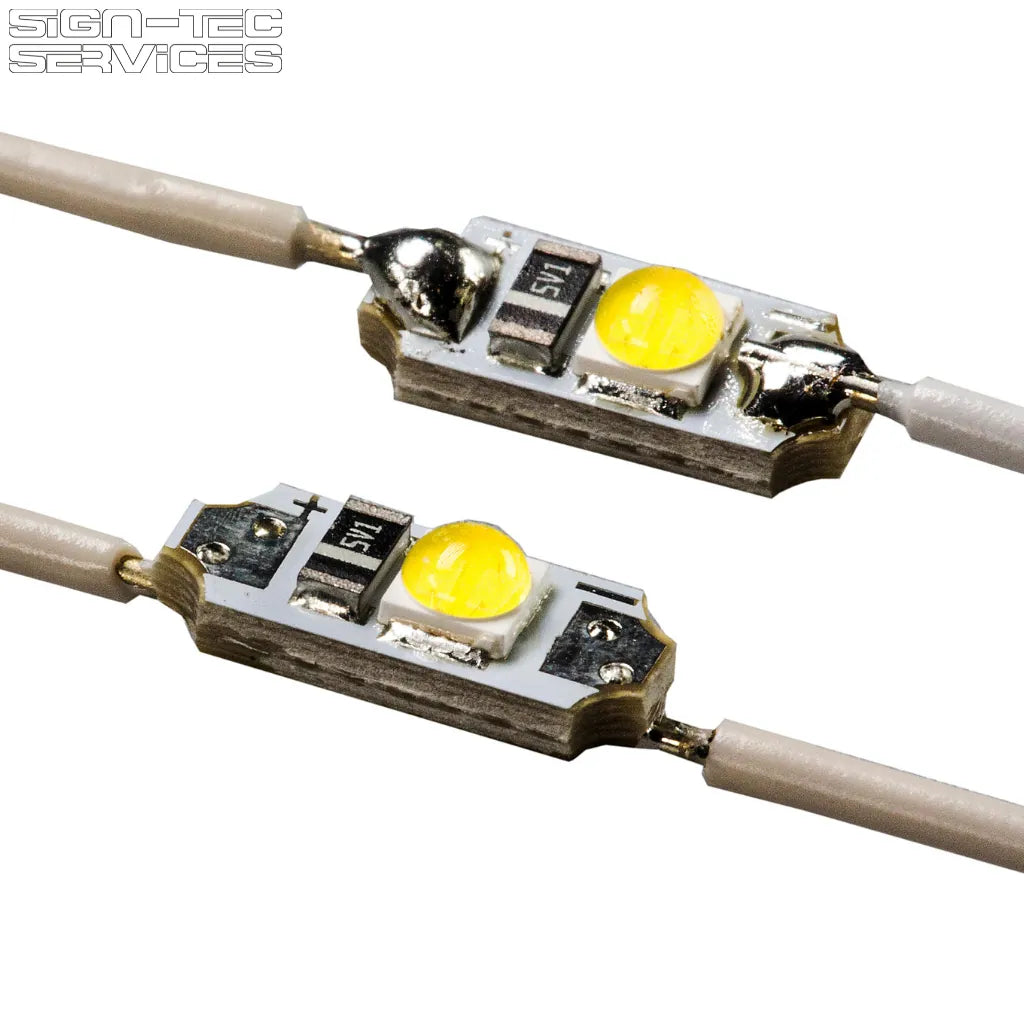

Hansen LEDchain for solid acrylic letters. Each LED sits on a small circuit board, linked to the next by wires. Hansen says the chain can be split or reconnected after each LED, and the wires can be bent to fit tight radii and corners. It is designed to be set into grooves cut in the letter and sealed with resin, lighting the letter to the front or the rear.

  • Length: 1m, 50 LEDs per metre at 20mm spacing (30mm spacing also available)
  • Width: 5.2mm (+/- 0.1mm), supplied without shrink tube
  • Colours: blue, green, orange, red, white 3000K, 5000K and 6500K

Driver: LEDchain runs only from a Hansen constant current LED convertor (see Hansen mA Drivers for LEDchain and LEDtube). Never connect it to a 12V or 24V LED power supply.

  • White, blue and green: 25mA, use a C25 convertor
  • Red and orange: 50mA, use a C50 convertor

The convertor output can reach several hundred volts DC, so installation must be by a suitably qualified person following Hansen's instructions.

Specifications

Size1m long, 5.2mm wide, LEDs at 20mm or 30mm spacing
